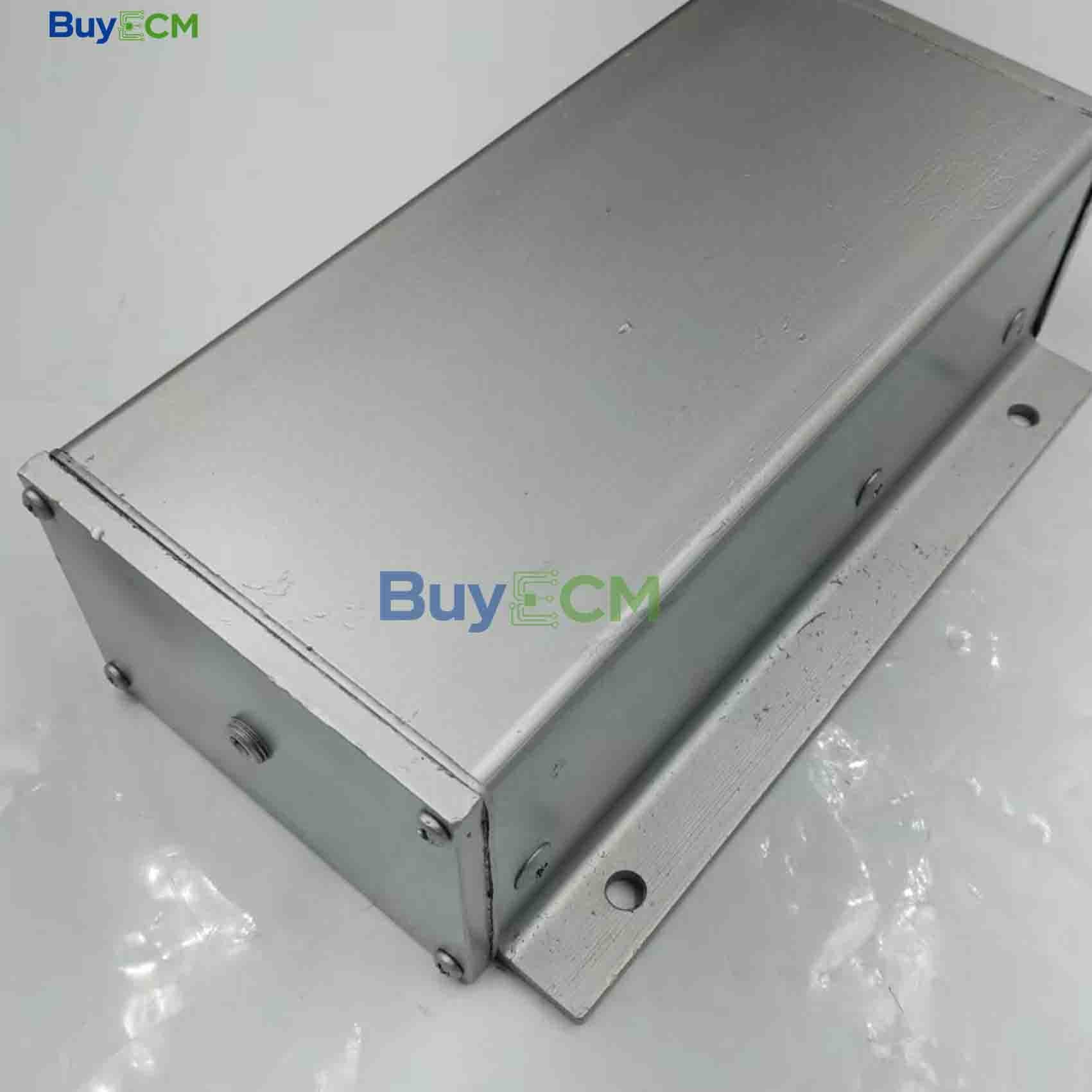

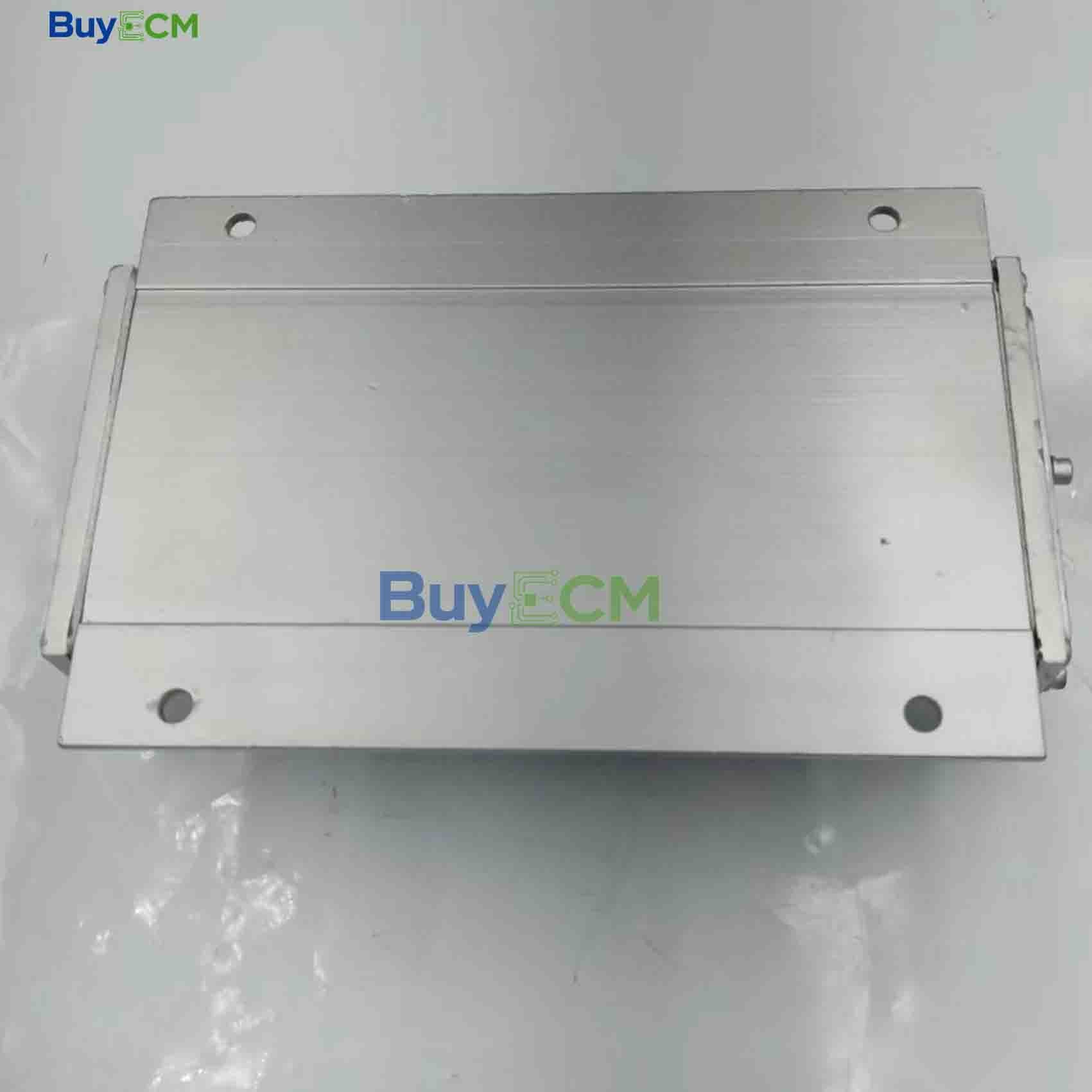

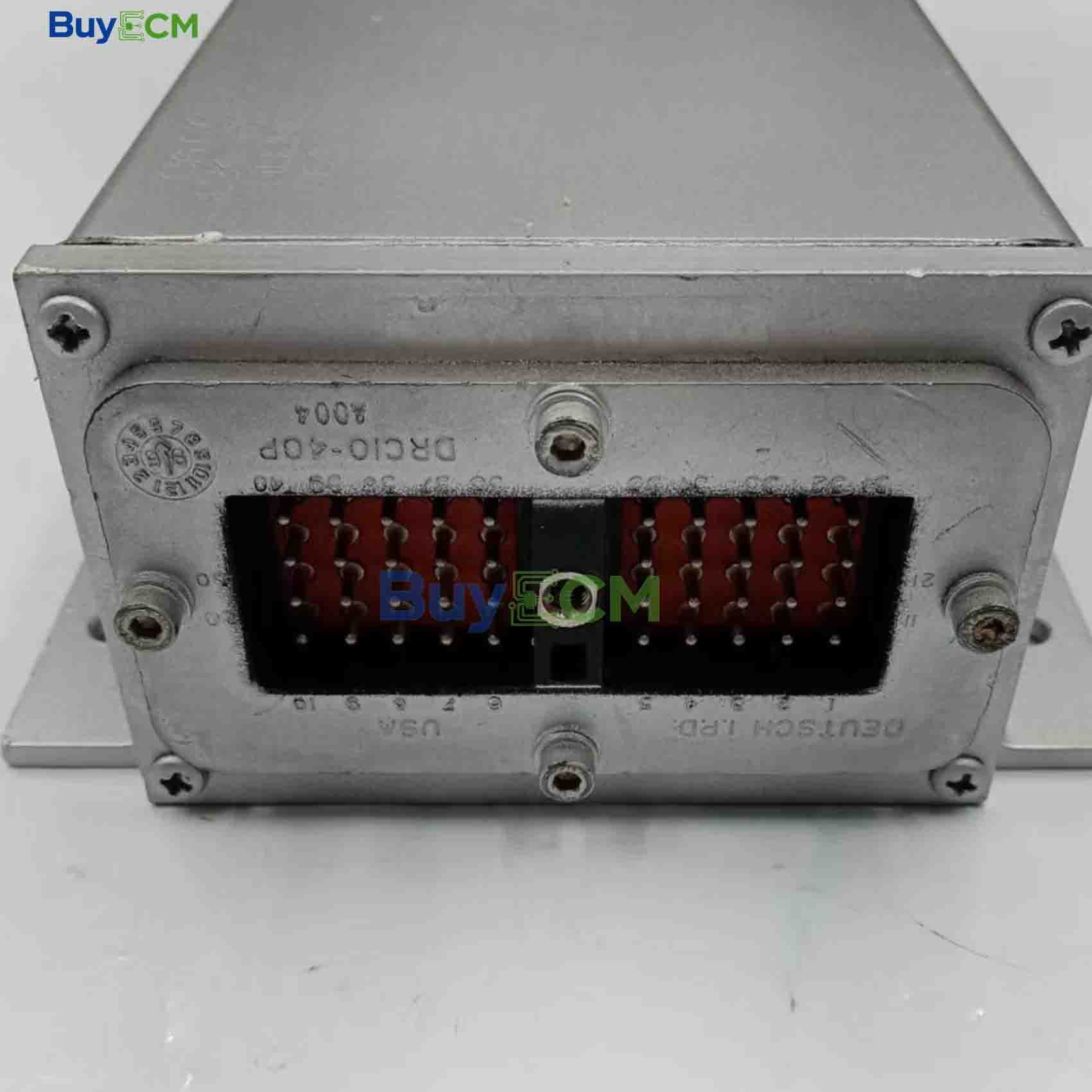

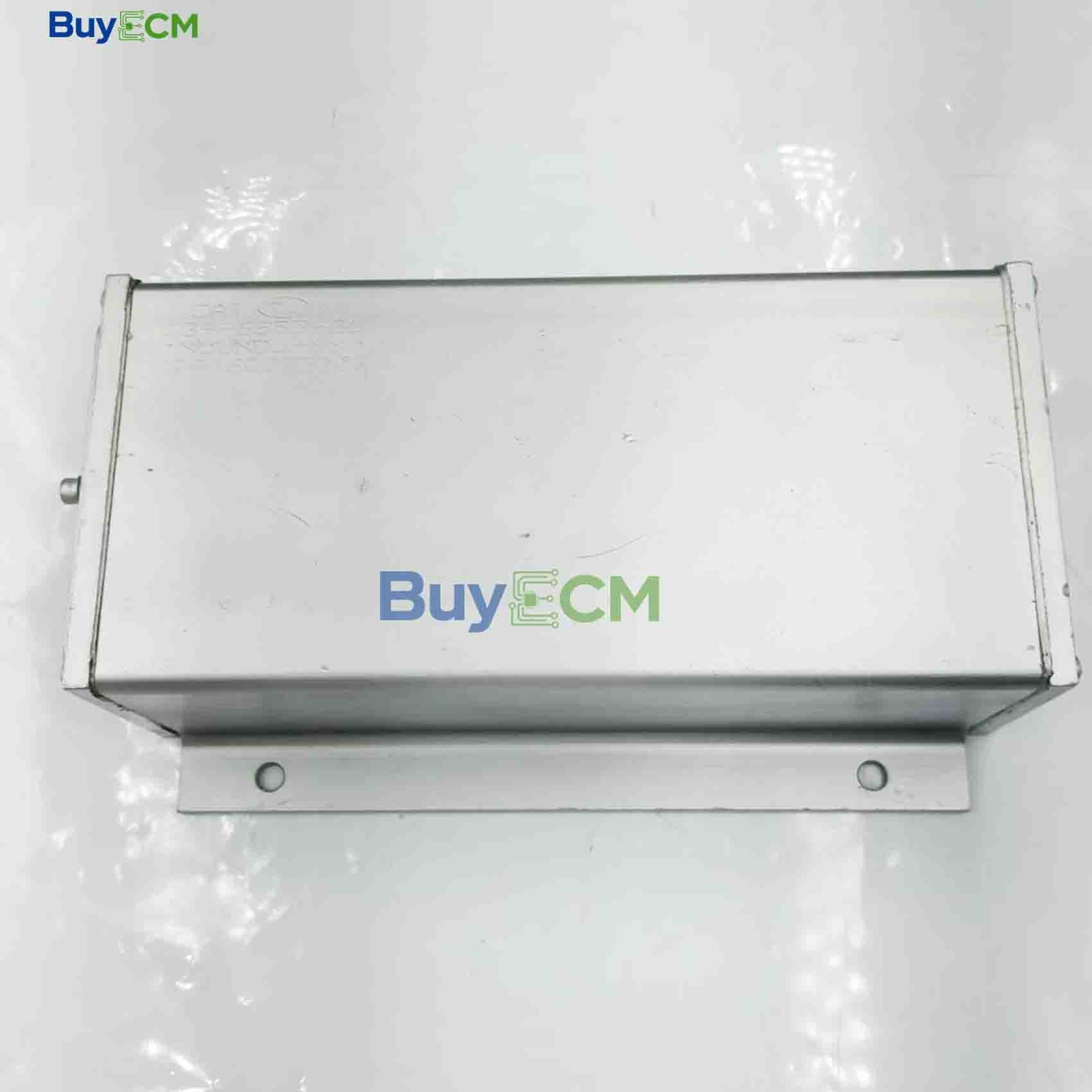

134-6553 1346553 3306 Engine Controller ECU ECM for 140H Loader

Product Testing Steps

Q1: How long does it take to install the ECM on machine?

A: 1. Physical Installation: 15-30 minutes. The unit is typically secured by 4 bolts on the cool side othe engine.    2. Programming & Testing: 30-60 minutes.   3. Pro Tip: If the ECM is pre-programmed by us based on your machine's serial number, it is essentially "Plug & Play." If not, you will need a Cat ET (Electronic Technician) tool to flash the software, which takes additional time. We recommend professional installation to ensure correct parameter synchronization.

Q2: How to determine if the ECM is faulty and needs replacement?

A: 1.The Cat ET diagnostic tool cannot communicate with the ECM, or it displays a "Module Not Responding" error. This       is a critical sign of internal hardware failure.    2.Active fault codes related to internal memory (EEPROM) or voltage reference issues that persist after checking the         wiring harness often indicate ECM failure.   3.Sudden engine stalling, severe power loss (Limp Mode), or persistent misfiring (missing injector driver signals) after       sensors and harnesses have been ruled out.  4.Sudden engine stalling, severe power loss (Limp Mode), or persistent misfiring (missing injector driver signals) after       sensors and harnesses have been ruled out. 5. Visible signs of overheating (burning smell), water ingress, corrosion, or broken pins on the connector headers.

Q3:What’s your payment method?

A:Our payment method has T/T,L/C,PayPal,etc.

Q4:Do you have stock

A: Rich stock

Q5.How can i know my order it already shipping ?

A: When the goods shipping , we will share tracking number for goods, if by sea or by air , we can offer bill of lading



1.**Prepare** Ensure the excavator is turned off and safely secured. Disconnect the battery to avoid electrical accidents.

2. **Inspect**: Check the ECU for physical damage or loose connections.

3. **Connect Diagnostic Tool**: Use a diagnostic tool recommended by the excavator's manufacturer. Connect it to the ECU according to the tool's instructions.

4. **Read Codes**: Use the diagnostic tool to read any error codes (DTCs) stored in the ECU. These codes indicate potential problems with the ECU or connected systems.

5. **Check Live Data**: View live data parameters such as sensor readings and system voltages. Ensure they are within normal ranges.

6. **Functional Tests**: If possible, perform tests to activate components or simulate sensor inputs. Verify that the ECU responds correctly without delays or errors.

7. **Reset (if needed)**: Reset the ECU if recommended by the manufacturer, especially after repairs or replacements.

8. **Document**: Keep a record of all tests, codes, and results for future reference.
